Petzl Rollclip

£36.60£42.00

Pulley-carabiner that facilitates installation of ropes, anchors and devices.

Clear
SKU: P7 Category: Tags: ,

Description

Designed for a multitude of applications, the Petzl ROLLCLIP models combine the efficiency of a pulley with the ease of clipping a carabiner. The Petzl ROLLCLIP has the pulley wheel of the MINI pulley, but with extended and reshaped side plates to create a large volume frame with built-in closure system. This eliminates the need for a secondary connector and reduces the overall height to a convenient size. Reducing friction at a rope redirect or perhaps part of an emergency hauling system in water rescue; once you have one you are going to find more and more uses for it. A neat example of use is when linked into a handled ascender to create some mechanical advantage when doing a short ascent. The high quality pulley wheel with ball bearings gives the best return on your effort, with the bonus of the compact height allowing a bit more travel before resetting. Once in position, the gate orientation enables easy and rapid installation of the rope, with a key lock nose further reducing the chance of snagging. The Petzl ROLLCLIP is available as two separate versions: ROLLCLIP A and ROLLCLIP Z.

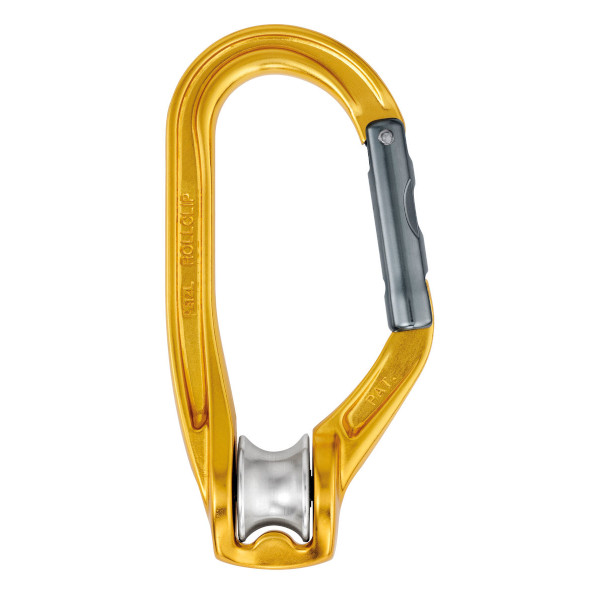

Description – Petzl Rollclip A

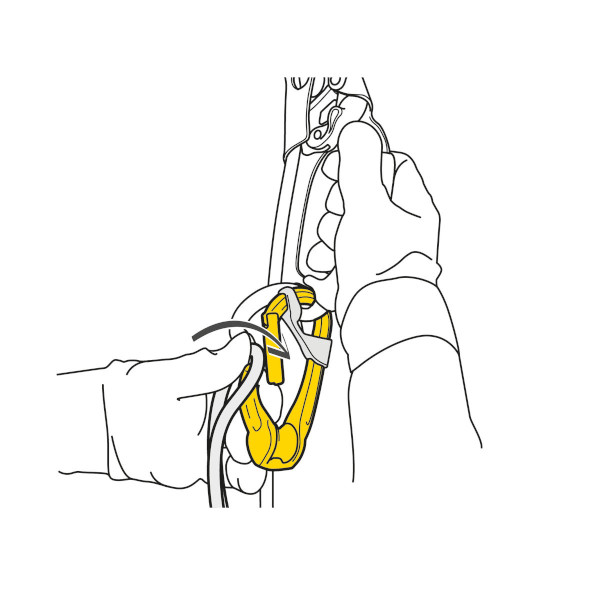

ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system. ROLLCLIP A may be used with a CAPTIV positioning bar to favour loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

  • Easier handling:
    – sheave mounted on sealed ball bearings for excellent efficiency
    – gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
    – may be used with a CAPTIV positioning bar to favour loading of the carabiner along the major axis and to limit the risk of it flipping
    – Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
  • H cross-section of carabiner:
    – ensures an improved strength-to-weight ratio
    – protects markings from abrasion
  • Available in versions with or without TRIACT-LOCK locking system

Description – Petzl Rollclip Z

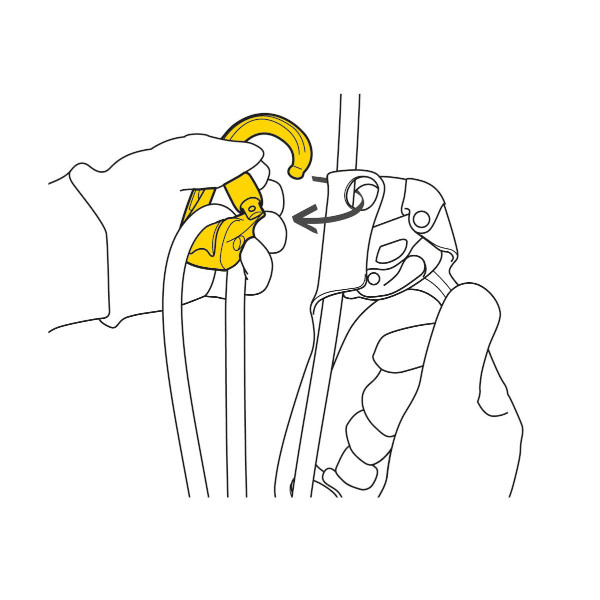

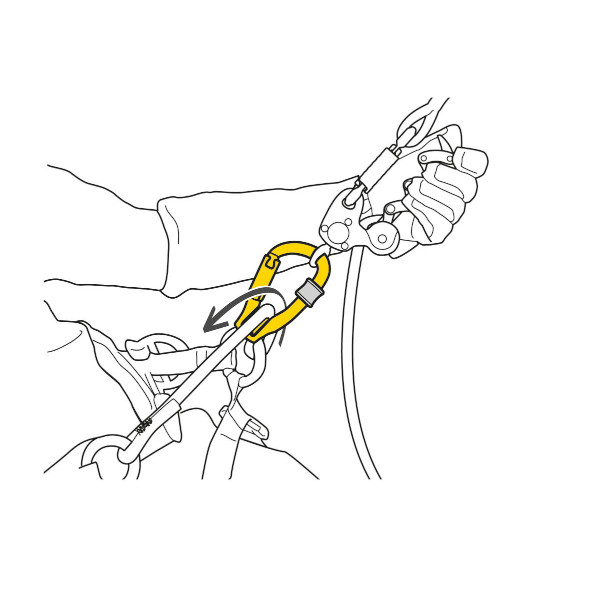

ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.

  • Easier handling:
    – sheave mounted on sealed ball bearings for excellent efficiency
    – gate opening on the non-pulley side, to facilitate installation on devices
    – Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
  • H cross-section of carabiner:
    – ensures an improved strength-to-weight ratio
    – protects markings from abrasion
  • Two locking systems available:

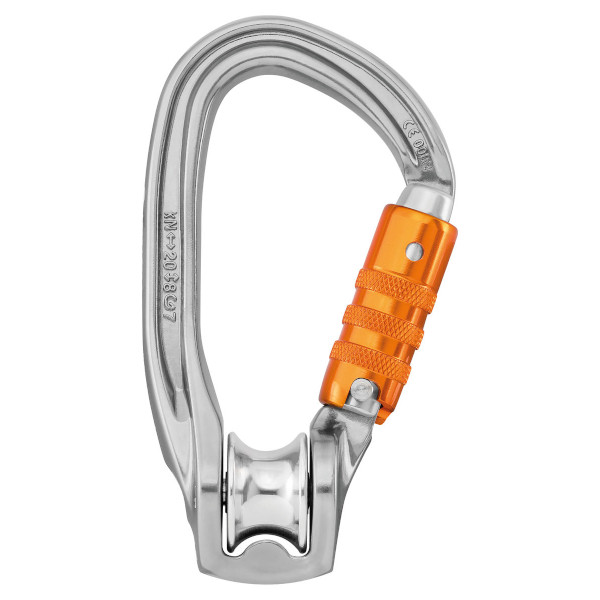

    – TRIACT-LOCK: automatic locking with triple-action gate opening

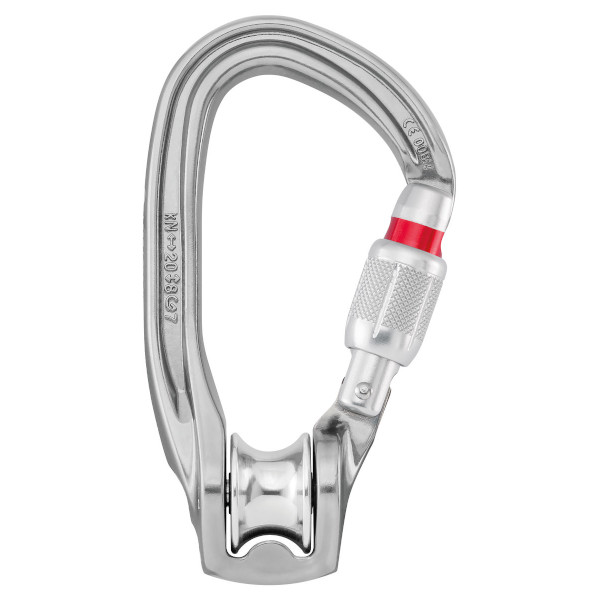

    – SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

Specifications

  • Material(s): aluminium
  • Min. rope diameter: 7 mm
  • Max. rope diameter: 13 mm
  • Sheave diameter: 18 mm
  • Maximum working load: 2 x 2 = 4 kN
  • Efficiency: 85 %
  • Major axis strength: 20 kN
  • Minor axis strength: 8 kN
  • Open gate strength: 7 kN

Additional information

Type of Rollclip

Rollclip A, Rollclip Z

Locking System

Triact-Lock, Screw-Lock, Non-Locking
